ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 156.2 x W 153.4
- Base (in): L 65 x W 60.4
Dimensiones Superiores
- Top (cm): L 200.6 x W 149.4
- Top (in): L 79.0 x W 58.8
Altura
- Height (cm): 162.6
- Height (in): 64
Pesos y Capacidad
- Tara: 82 kg
- Peso max: 1,587 kg
Códigos Aéreos
AVA, AVB, AVE, AKE, AVM, AVN, RKN, RVB, RVE, RVN
Aeronaves Compatibles
A300, A310, B747, B777, A340

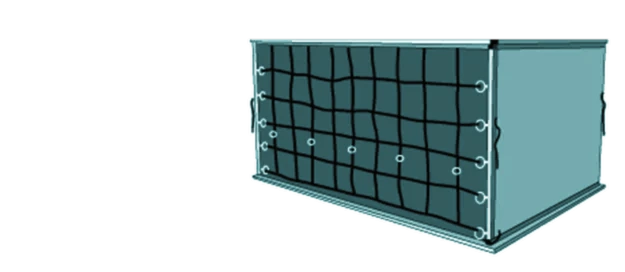

ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 317.5 x W 223.5
- Base (in): L 125 x W 88
Altura
- Height (cm): 162.6
- Height (in): 64
Pesos y Capacidad
- Tara: 270 kg
- Peso max: Lower deck: 1,587 kg
- Peso max: Main deck: 6,000 kg
Códigos Aéreos
AAZ, AAP, RAZ, RAP
Aeronaves Compatibles
A300, A310, B747, B767, B777, A340

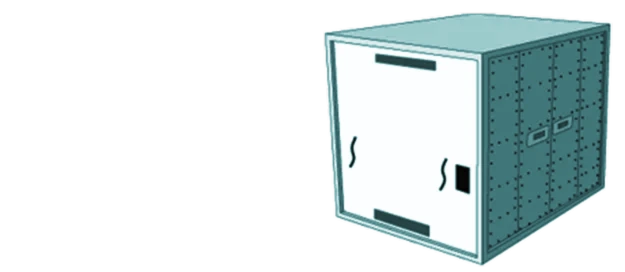

ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 317.5 x W 243.8
- Base (in): L 125 x W 96
Altura
- Height (cm): 243.8
- Height (in): 96
Pesos y Capacidad
- Tara: 340 kg
- Peso max: 6,800 kg
Códigos Aéreos
AQ6, AQA, AMA, AMK, RQA, AQD
Aeronaves Compatibles
B747

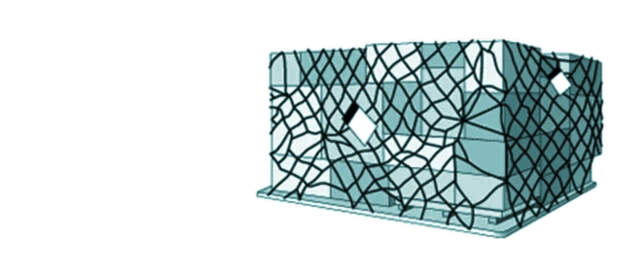

ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 317.5 x W 223.5
- Base (in): L 125 x W 88
Pesos y Capacidad
- Tara: 110 kg
- Peso max: Lower deck: 4,626 kg
- Peso max: Main deck: 6,000 kg
Códigos Aéreos
PIA, PIC, PID, PIG, PIP, PIX, PAG, PAJ, PAP, PAA, PAX
Aeronaves Compatibles
A300, A310, B747, B767, B777, A340

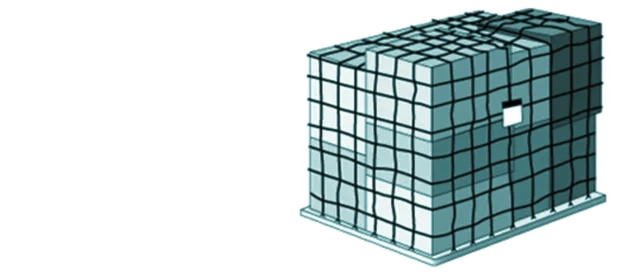

ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 317.5 x W 242.8
- Base (in): L 125 x W 96
Pesos y Capacidad
- Tara: 120 kg
- Peso max: Lower deck: 4,626 kg (depending on aircraft)
- Peso max: Lower deck: 5,035 kg (depending on aircraft)
- Peso max: Main deck: 6,800 kg
Códigos Aéreos
P6C, P6P, PQP, PMC, PMP
Aeronaves Compatibles
A300, A310, A340, B747, B767, B777

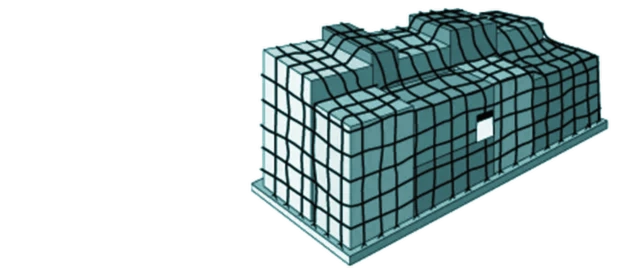

ULD dimensions and weight measurements are subject to the conditions of the individual airline company.
Dimensiones Base
- Base (cm): L 605.8 x W 243.8
- Base (in): L 238.5 x W 96
Pesos y Capacidad
- Tara: 540 kg
- Peso max: 11,300 kg
Códigos Aéreos
P7A, P7E, P7F, PSG, PGE, PGA
Aeronaves Compatibles
B747-MD (freighter)

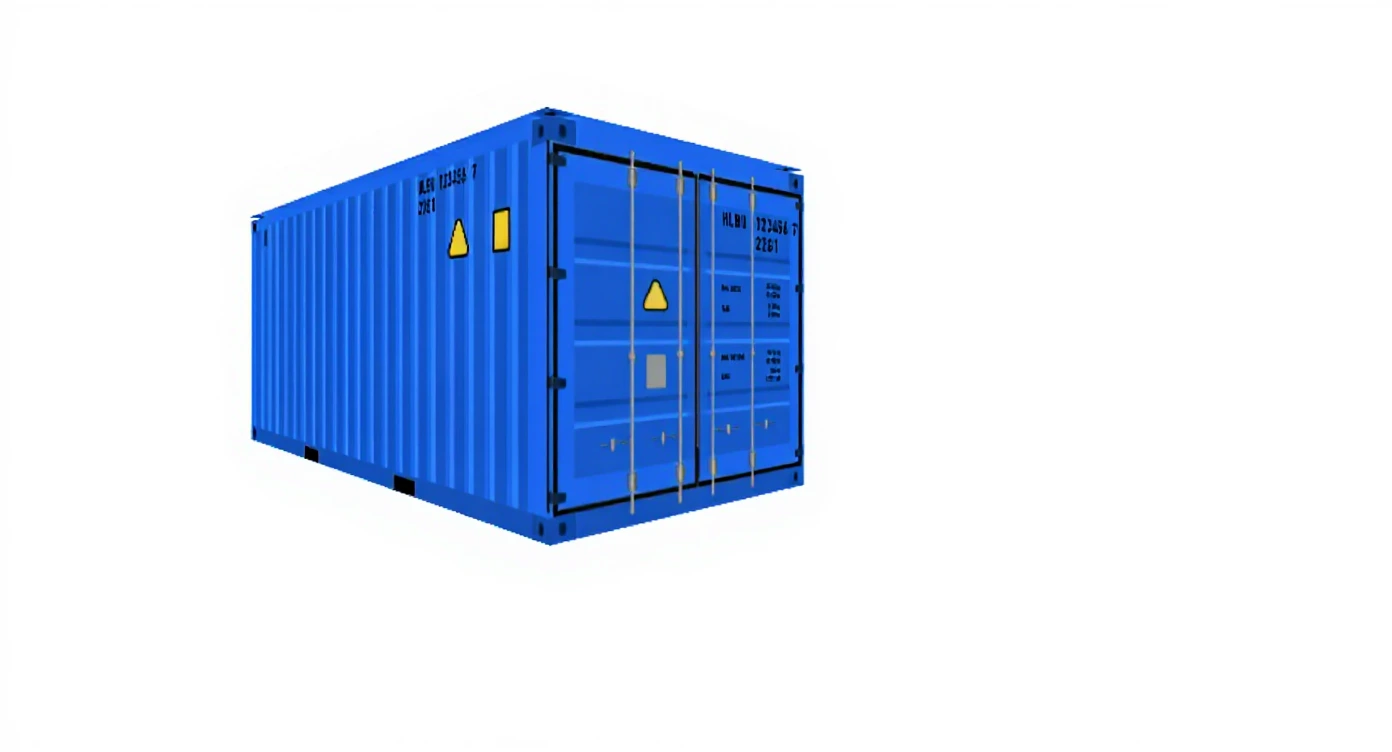

Dry containers (DC) are the most used type of container in the world: 90% of goods shipped by sea are loaded in dry containers. Made of aluminum or steel and suitable for all types of cargo.
Dimensiones Internas
- Length: 5.9 m (19.4 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.39 m (7.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.28 m (7.5 ft)
Pesos y Capacidad
- Tara: 2,300 kg (5,071.5 lbs)
- Carga útil: 25,000 kg (55,126.9 lbs)
- Capacidad cúbica: 33.2 m³ (1,172 cu ft)
40-foot dry containers provide double the capacity of 20-foot containers while maintaining the same width and height specifications.
Dimensiones Internas
- Length: 12.03 m (39.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.39 m (7.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.28 m (7.5 ft)
Pesos y Capacidad
- Tara: 3,750 kg (8,268.8 lbs)
- Carga útil: 27,600 kg (61,200 lbs)
- Capacidad cúbica: 67.7 m³ (2,389 cu ft)

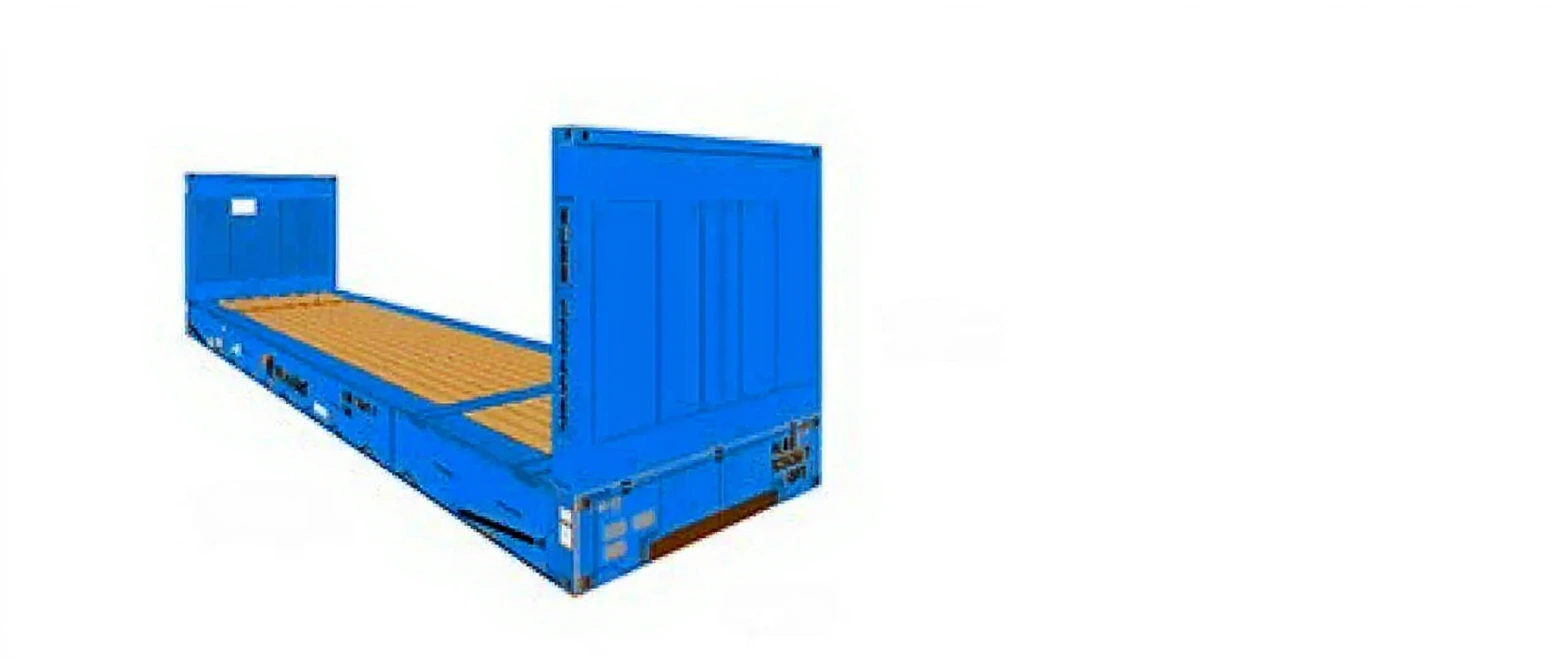

Flat rack containers are especially suitable for heavy loads and cargo that needs loading from the top or sides, such as pipes and machinery.
Dimensiones Internas
- Length: 5.94 m (19.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.35 m (7.7 ft)
Pesos y Capacidad
- Tara: 2,360 kg (5,203.8 lbs)
- Carga útil: 30,140 kg (66,458.7 lbs)
- Capacidad cúbica: 32.7 m³ (1,154.3 cu ft)
40-foot flat rack containers provide increased capacity for oversized cargo that requires side or top loading.
Dimensiones Internas
- Length: 12.13 m (39.8 ft)
- Width: 2.40 m (7.9 ft)
- Height: 2.14 m (7 ft)
Pesos y Capacidad
- Tara: 5,000 kg (11,025 lbs)
- Carga útil: 40,000 kg (88,200 lbs)
- Capacidad cúbica: 62.2 m³ (2,195.7 cu ft)

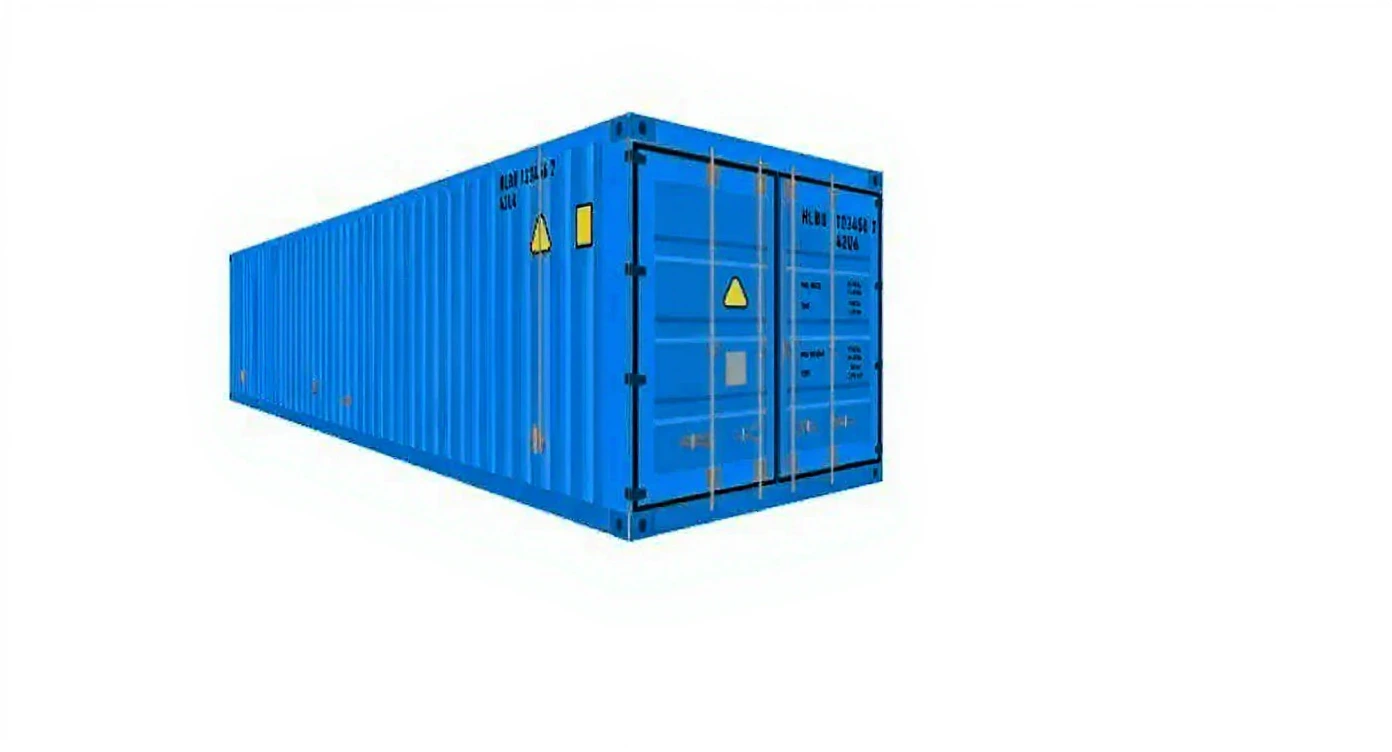

High cube dry containers provide an extra foot (30cm) in height compared to standard containers, ideal for light, voluminous or bulky cargo.
Dimensiones Internas
- Length: 12.03 m (39.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.70 m (8.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.58 m (8.5 ft)
Pesos y Capacidad
- Tara: 3,940 kg (8,687.7 lbs)
- Carga útil: 28,560 kg (62,974.8 lbs)
- Capacidad cúbica: 76.4 m³ (2,696.9 cu ft)
45-foot high cube containers offer maximum volume for lightweight, bulky cargo.
Dimensiones Internas
- Length: 13.56 m (44.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.70 m (8.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.58 m (8.5 ft)
Pesos y Capacidad
- Tara: 4,820 kg (10,628.1 lbs)
- Carga útil: 27,860 kg (61,431.3 lbs)
- Capacidad cúbica: 86 m³ (3,035.8 cu ft)

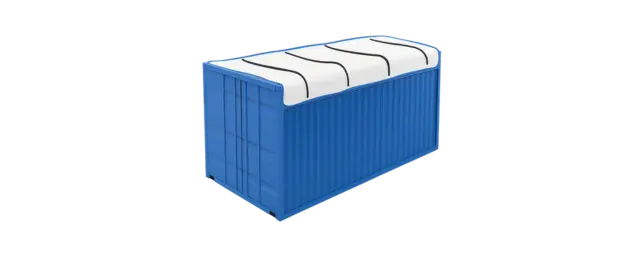

Open top containers have an open top covered by a tarp instead of a solid roof, enabling oversized cargo to be loaded from the top.
Dimensiones Internas
- Length: 5.9 m (19.3 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.38 m (7.8 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.28 m (7.4 ft)
Abertura de Techo
- Width: 2.23 m (7.3 ft)
- Length: 5.44 m (17.8 ft)
Pesos y Capacidad
- Tara: 2,350 kg (5,181.8 lbs)
- Carga útil: 28,130 kg (62,026.7 lbs)
- Capacidad cúbica: 32.5 m³ (1,147.3 cu ft)
40-foot open top containers provide increased capacity for oversized cargo that requires top loading access.
Dimensiones Internas
- Length: 12.03 m (39.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.38 m (7.8 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.29 m (7.5 ft)
Abertura de Techo
- Width: 2.21 m (7.3 ft)
- Length: 11.57 m (38 ft)
Pesos y Capacidad
- Tara: 3,850 kg (8,489.3 lbs)
- Carga útil: 26,630 kg (58,719.2 lbs)
- Capacidad cúbica: 66.4 m³ (2,343.9 cu ft)

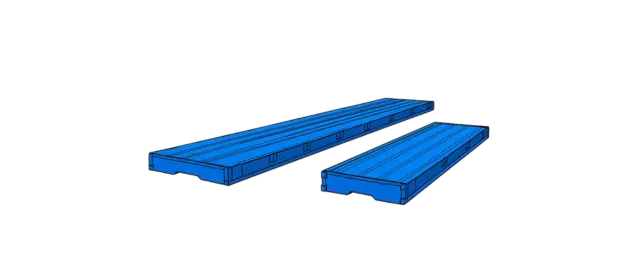

A platform container is a container without sides, ends or a roof. Used for odd-sized cargo which does not fit in any other type of container.
Dimensiones Internas
- Length: 6.06 m (19.9 ft)
- Width: 2.44 m (8 ft)
Pesos y Capacidad
- Tara: 2,740 kg (6,041.7 lbs)
- Carga útil: 31,260 kg (68,928.3 lbs)
40-foot platform containers provide a larger flat surface for oversized and irregularly shaped cargo.
Dimensiones Internas
- Length: 12.19 m (40 ft)
- Width: 2.44 m (8 ft)
Pesos y Capacidad
- Tara: 5,700 kg (12,568.5 lbs)
- Carga útil: 39,300 kg (86,656.5 lbs)

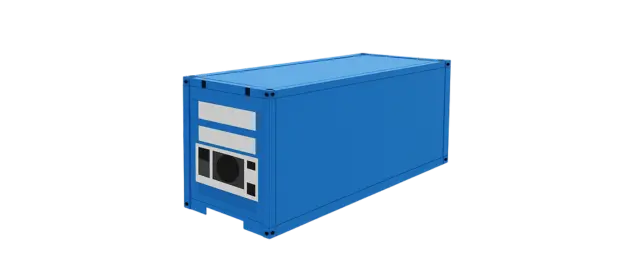

Reefer containers are used to transport goods requiring temperature-controlled conditions. Fitted with refrigeration unit connected to ship's power supply.
Dimensiones Internas
- Length: 5.44 m (17.9 ft)
- Width: 2.29 m (7.5 ft)
- Height: 2.27 m (7.5 ft)
Abertura de Puerta
- Width: 2.23 m (7.3 ft)
- Height: 2.10 m (6.9 ft)
Pesos y Capacidad
- Tara: 3,080 kg (6,791.4 lbs)
- Carga útil: 27,400 kg (60,417 lbs)
- Capacidad cúbica: 28.3 m³ (999 cu ft)
40-foot reefer containers provide increased capacity for temperature-sensitive cargo like fruits, vegetables, dairy and meat products.
Dimensiones Internas
- Length: 11.56 m (37.9 ft)
- Width: 2.28 m (7.5 ft)
- Height: 2.25 m (7.4 ft)
Abertura de Puerta
- Width: 2.29 m (7.5 ft)
- Height: 2.26 m (7.4 ft)
Pesos y Capacidad
- Tara: 4,800 kg (10,584 lbs)
- Carga útil: 27,700 kg (61,078.5 lbs)
- Capacidad cúbica: 59.3 m³ (2,093.3 cu ft)
High cube reefer containers combine temperature control with extra height for increased volume of refrigerated goods.
Dimensiones Internas
- Length: 11.58 m (38.0 ft)
- Width: 2.29 m (7.5 ft)
- Height: 2.40 m (7.9 ft)
Abertura de Puerta
- Width: 2.29 m (7.5 ft)
- Height: 2.57 m (8.4 ft)
Pesos y Capacidad
- Tara: 4,480 kg (9,880 lbs)
- Carga útil: 29,520 kg (65,080 lbs)
- Capacidad cúbica: 67.3 m³ (2,380 cu ft)
45-foot reefer containers offer maximum refrigerated capacity for large shipments of temperature-sensitive goods.
Dimensiones Internas
- Length: 11.57 m (38 ft)
- Width: 2.27 m (7.4 ft)
- Height: 2.55 m (8.4 ft)
Abertura de Puerta
- Width: 2.29 m (7.5 ft)
- Height: 2.26 m (7.4 ft)
Pesos y Capacidad
- Tara: 4,850 kg (10,694.3 lbs)
- Carga útil: 29,150 kg (64,275.8 lbs)
- Capacidad cúbica: 67 m³ (2,365.1 cu ft)

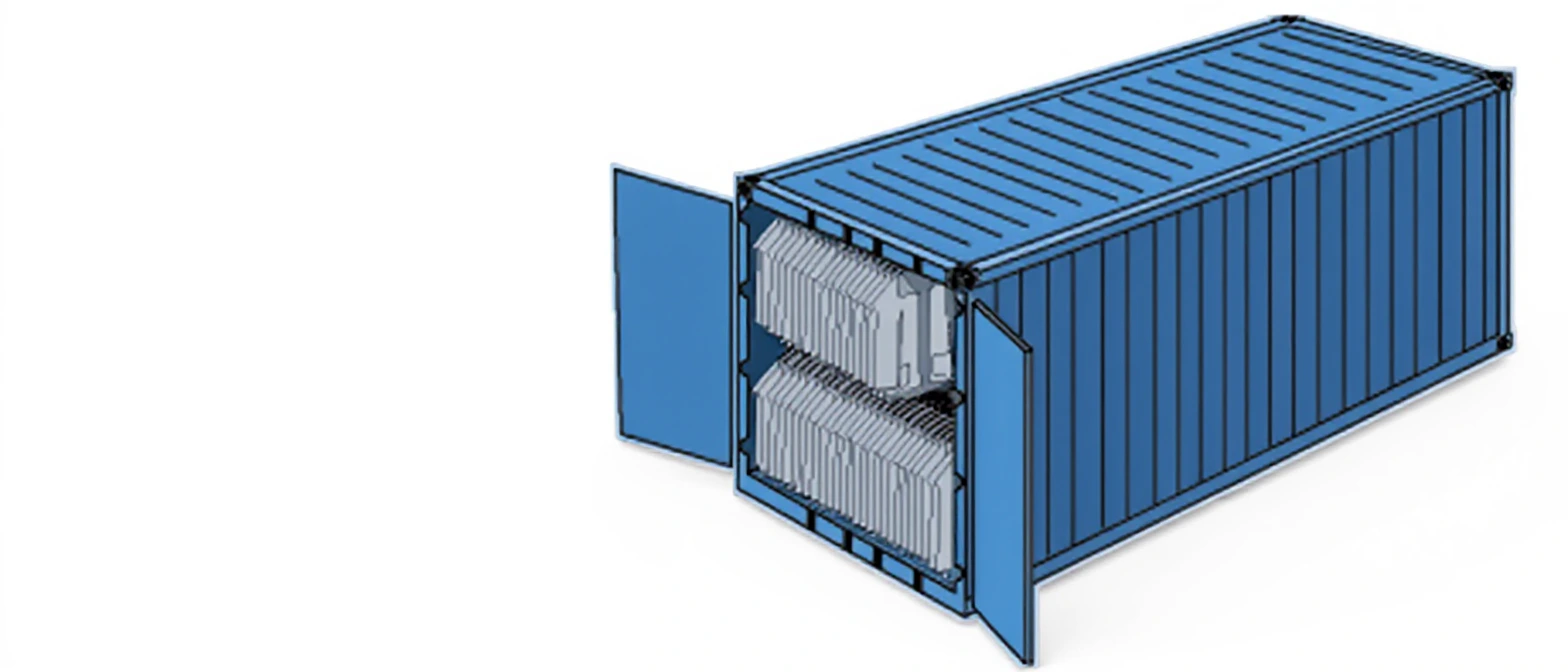

Garments on Hangers (GOH) containers are used for shipping high-quality garments, offering string or bar system options for hanging clothes.
Dimensiones Internas
- Length: 5.9 m (19.4 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.39 m (7.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.28 m (7.5 ft)
Pesos y Capacidad
- Tara: 2,300 kg (5,071.5 lbs)
- Carga útil: 28,180 kg (62,136.9 lbs)
- Capacidad cúbica: 33.2 m³ (1,172 cu ft)
40-foot GOH containers provide increased capacity for fashion and retail industries requiring efficient garment transportation.
Dimensiones Internas
- Length: 12.03 m (39.5 ft)
- Width: 2.35 m (7.7 ft)
- Height: 2.39 m (7.9 ft)
Abertura de Puerta
- Width: 2.34 m (7.7 ft)
- Height: 2.28 m (7.5 ft)
Pesos y Capacidad
- Tara: 3,750 kg (8,268.8 lbs)
- Carga útil: 28,750 kg (63,393.8 lbs)
- Capacidad cúbica: 67.7 m³ (2,389.8 cu ft)

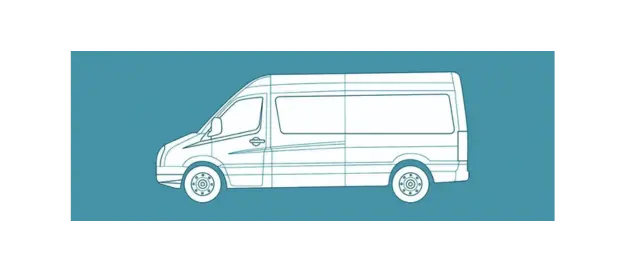

Vehículo ligero ideal para entregas urgentes y distribución urbana eficiente. Capacidad máxima de carga de hasta 5,500 lbs.
Dimensiones Internas
- Max length: 10 ft – 15 ft
- Max width: 6 ft
- Max height: 5.5 ft
Pesos y Capacidad
- Peso max: 5,500 lbs

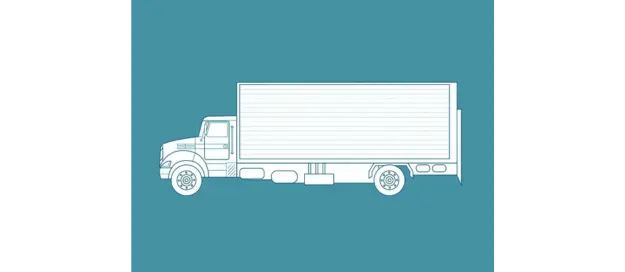

Camión cerrado versátil para distribución urbana e interurbana. Peso máximo de carga 7,000 – 10,000 lbs.
Dimensiones Internas
- Max length: 12 ft – 26 ft
- Max width: 6 ft – 7.5 ft
- Max height: 7 ft
Pesos y Capacidad
- Peso max: 7,000 – 10,000 lbs

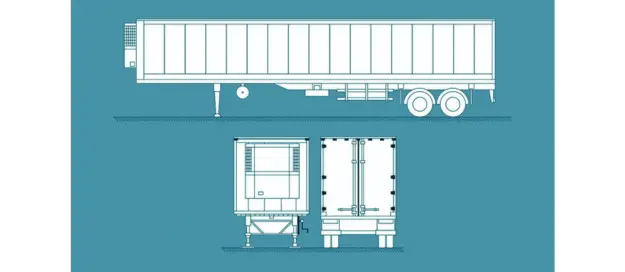

Remolque refrigerado para productos perecederos. Peso máximo de carga 44,000 lbs.
Dimensiones Internas
- Max length: 48 ft – 53 ft
- Max width: 8 ft
- Max height: 9 ft
Pesos y Capacidad
- Peso max: 44,000 lbs

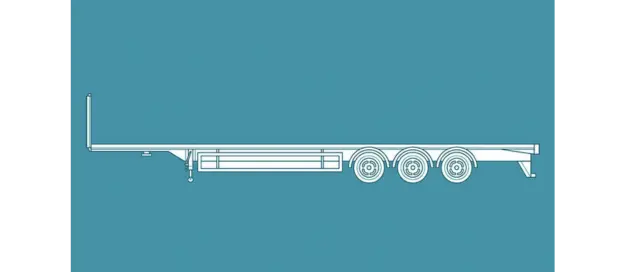

Remolque plataforma para carga sobredimensionada y maquinaria. Peso máximo de carga 48,000 lbs.
Dimensiones Internas
- Max length: 48 ft – 53 ft
- Max width: 8.5 ft
- Max height: 9 ft
Pesos y Capacidad
- Peso max: 48,000 lbs

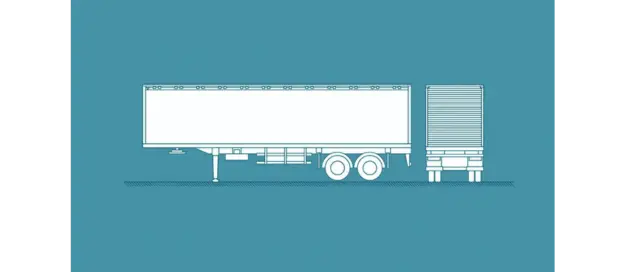

Remolque cerrado para carga seca: textiles, alimentos no perecederos, electrónicos y más. Peso máximo de carga 42,000 – 45,000 lbs.
Dimensiones Internas
- Max length: 48 ft – 53 ft
- Max width: 8 ft
- Max height: 9 ft
Pesos y Capacidad
- Peso max: 42,000 – 45,000 lbs

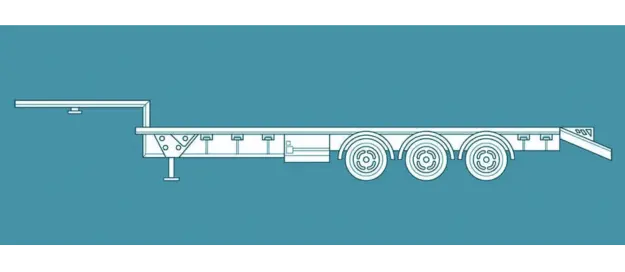

Remolque bajo para maquinaria pesada y equipos de construcción. Ideal para cargas de gran altura.
Dimensiones Internas
- Max length: 40 ft – 53 ft
- Max width: 8.5 ft
- Max height: 11.5 ft
Pesos y Capacidad
- Peso max: 80,000 lbs

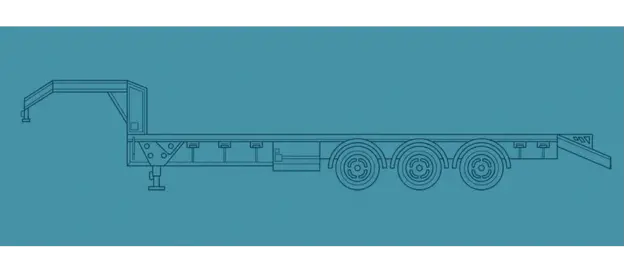

Remolque con cuello de ganso removible para maquinaria extra pesada. Facilita la carga desde el frente.
Dimensiones Internas
- Max length: 48 ft – 53 ft
- Max width: 8.5 ft
- Max height: 11.5 ft
Pesos y Capacidad
- Peso max: 150,000 lbs
Remolque que se puede dejar en las instalaciones del cliente para carga y descarga eficiente.
Dimensiones Internas
- Max length: 48 ft – 53 ft
- Max width: 8 ft
- Max height: 9 ft
Pesos y Capacidad
- Peso max: 45,000 lbs
